Product Details
- Amazon Sales Rank: #1193 in Lawn & Patio
- Color: black
- Model: 012L000258
Features
- Maximum Current: 30A
- Wire Size Range: 2.5mm2, 4mm2, 6mm2[AWG14, AWG12, AWG10]
- Pair of MC4 Connectors, For Solar Panel Connection
- Waterproof, UV Resistant for Outdoor Use

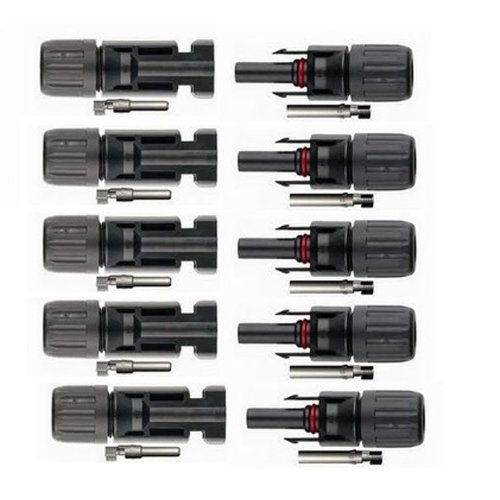

5 Pairs of MC4 Male/ Female Solar Panel Cable Connectors
Product Description
5 Pairs of MC4 compatible Male/Female Solar Panel cable Connectors (5 pcs of MC4 Male, and 5 pcs of MC4 Female).
Features:
1.Rated Current: 22(2.5mm), 30A(4, 6mm)
2.Withstanding Voltage: 1000V DC
3.Contact Resistance: Less than 0.5 Mohms
4.Protection Class: Class II
5.Mechanical Features:
Temperature Range: -40 C ~ +90 C
Protection Degree: IP2X, unmated; IP67, mated
Unmating Force: 200 Newton
Wire Size Range: 2.5mm2, 4mm2, 6mm2[AWG14, AWG12, AWG10]
6.Material Features:
Insulation Material: PC/PA, black
Contact Material: Copper, Sliver plated
Flame Class: UL94-VO or UL94-5VA
package include:
5 Pairs of MC4 compatible Male/Female Solar Panel cable Connectors
Dear buyer, Please contact our customer service member if there is something let you unsatisfy, please do not leave negative or neutral feedback we will try best to solve your problem and ensure your requirement.Thank you!
Customer Reviews
Most helpful customer reviews
1 of 1 people found the following review helpful.
By Fred Bauer
Fast delivery, good price, and good quality product. The positive (male) pin on some units were not tapered enough so insertion was difficult where pin was not perfectly centered in the housing. Use a file to smooth the end of the pin.No special tool needed for assembly or disassembly. SwissTool did the job. I soldered the crimps also.
1 of 1 people found the following review helpful.
By duanewamp
Items came quickly and exactly as advertised. I would gladly buy the same thing again. These are simple to use and install.
0 of 0 people found the following review helpful.
By amzn buyer
These things fit perfect, at least the batch i got. They were better than the panel connectors because they had locking tabs, while the panel connectors did not have that little tab to lock the connectors together. One thing, i have a HEX crimper but decided to solder the conductor pin also since i don't want to deal with fixing anything on the roof for 20 years. Last thing, 8ga wire will fit thru the shell and pin will crimp perfectly.
