Product Details
- Amazon Sales Rank: #4497 in Lawn & Patio
- Brand: HQRP
Features
- HQRP® Solar Charge Controller plus HQRP® UV Chain / UV Radiation Health Tester;
- Equalisationvoltage: 14.8 Volt; High voltage disconnect: 14.4; Float voltage: 13.6Volt;
- Low voltage disconnect: 11.1 Volt; Low voltage reconnect: 12.6 Volt; Self-consumption: 6mA maximum;
- Terminals: for wire sizes to 6mm2; PWM charge mode & state of charge (SOC).
- 200 days warranty!

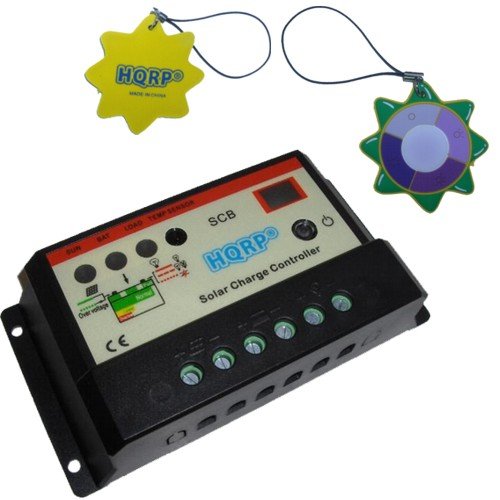

HQRP Solar Power Controller 10Amp 150W with Digital LED Display plus HQRP UV Chain / UV Radiation Health Tester
Product Description
Regulations point: 14.4 Volts; Low voltage Disconnect: 11.1V Volts; Low voltage Reconnect: 13.1 Volts; Microcontroller digital accuracy; Type of Charging: Series PWM & stat of charge(SOC); 4 Stages: equalization, PWM, Boost and Float, temperature compensated charging; Electronic protections: Short circuit and over current-solar and load; Reverse current at night; Limits high voltage to protect loads; Lighting protection; Tropicalization Conformal coated printed circuit board; Terminals For wire sizes to 6mm2; Self-consumption: 6mA maximum. Solar Controller supports up to 150W of 12V Solar panels and up to 300W of 24V Solar panels. For 12V solar panels, please, use battery and load for 12V solar systems (For 24V solar panels, please, use battery and load for 24V solar systems). HQRP UV Chain / UV Radiation Tester: To know the Solar UV Index, it is enough to compare the colorchange with the 4 standard colors around. Very light purple: low intensity, UV index 1-2. Sun-protection not necessary. Light purple: medium intensity, UV index 3-5. Sun-protection is recommended. Purple: strong intensity, UV index 6-7. Sun-protection is necessary. Dark purple: very strong intensity, UV index 8-11. This tester shows you the level of UV radiation and helps you protect your eyes and skin from negative sunlight effect, but this meter doesn't show sunlight intensity for solar panels.
Customer Reviews
Most helpful customer reviews
44 of 46 people found the following review helpful.
By J. Preece
For the past few years I used the SunForce 7A charge controller and it worked very well. When I added another panel to my small system I upgraded to this model to handle the extra few amps.This charger is really a step above the SunForce model in the same price range. It is not simply an "on/off" solid state switch... it controls/limits the current to the batteries to maintain a very precise voltage. When the batteries have been fully charged, it then float-charges at a constant rate. This will keep the batteries much healthier over time than simply cycling between 13.1V and 14.2V. If you are using SLA or Gel-SLA batteries, I think you'll really find this charger is made for these types of batteries.I like the output load control. A simple push-button on the front of the unit turns the load on/off, and the small "digital LED display" is just a red LED indicating if the load is on. It doesn't give any sort of digital readout like the details above say, however it's not necessary if you have your voltmeter handy.The LED indicators are sufficient, telling you if the solar system is providing power, the battery condition, and the load state. The wiring terminals seem sturdy and can handle 10-gauge wire which is nice. As others have said, the manual is sort of a joke. It gives you the bare basics but since this is a pretty simple device you don't need a book to figure it out.Really pretty happy with this unit. I was considering the SunForce 30A charger which is over 2x the price of this unit, but glad I tried this one first.
12 of 12 people found the following review helpful.
By Nick
While the instructions are minimal - and apparently made by those for whom English is not the first language - the unit itself is first class and an order of magnitude better than the SunForce 7amp controller, which is just an on/off electric switch. My only complaint is that the LEDs are recessed and diffused, and viewable only from directly in front of the unit. I strongly urge anyone considering the SunForce controller to spend another $10 and buy this vastly superior product. It's hard to believe that there is only a $10 difference in price between this unit and the SunForce.
18 of 20 people found the following review helpful.
By T. Delnicki
There was a good week delay before this vendor shipped. The product is very straightforward to hook up, and has reversed polarity protection. The green lights on the unit were indicating my battery was fully charged, yet it was only at 12.2 V (not fully charged at all). As one other person indicated, the low-voltage cut off is fairly low, and your battery would be severely depleted before disconnecting. Having a higher voltage cut off would be much better for the battery. This is basically an entry-level controller, so I figured I'd got about what I paid for. I would certainly not choose as controller for a large array, but for one or 2 panels it should perform adequately. I have yet to check the higher voltage cut off, but is it supposed to kick off at 13.1 V. The maximum input voltage is supposed to be about 14.4 V, and have not seen readings higher than this. There seems to be a lot of "noise" on input voltage, but it gets the job done nevertheless. Again, about worth what I paid for it. This is certainly not a high-end product, but does perform adequately for the price.
