Product Details
- Amazon Sales Rank: #76154 in Lawn & Patio
- Brand: MISOL
Features
- Hybrid wind solar charge controller Rated Battery Voltage 12V Rated Wind Turbine Power 400W for wind turbine 400W with 12VDC output
- Display Parameters Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage,Over Voltage, UnderVoltage, OverLoad, Short Circuit, Night. Etc
- Protection Function: Solar reversechargeprotection, Solar reverseconnection protection, Battery overcharge protection, Battery overdischarge protection, Battery reverseconnection protection, Lightning protection Wind turbine current limiting,
- LCD display
- Optional Function 1: RS Communication and Matched Software. Optional Function 2: Low Voltage Charge Function.With this function.,Controller can start charging battery from 2V if runs in 12V battery bank

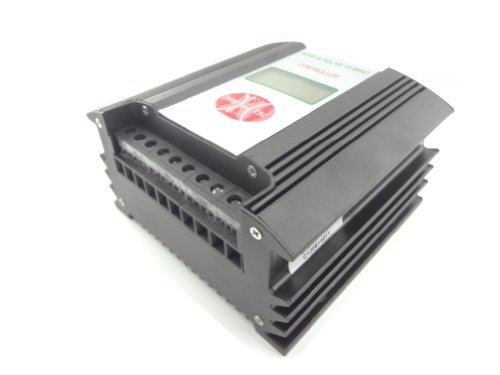

MISOL Hybrid Solar Wind Charge Controller 400W 12VDC/ wind charge controller / wind regulator / solar regulator
Product Description
It is used for the wind turbine400W, with 12VDC output
PERFORMANCE FEATURES:
- Perfect protection function, thus the system has higher reliability.
- LCD display
- Voltage limiting and current-limiting charge mode ensures battery in the best charging status
- Two DC Load output, light-control, time-control, constant output, and multiple output control mode selection
- PWM mode
Rated Battery Voltage 12V
Rated Wind Turbine Power 400W
Wind Turbine Maximum Input Current 40A
Wind Turbine Maximum Input Power 600W /
Unload Voltage(factory default) 14V
Unload Current(factory default) 25A
Rated Solar Powe 200W
Battery Over Discharge Voltage Shutoff 11V
Battery Over Discharge Recovery 12V
Output Protection Voltage 16V
PV Voltage Of Light-Control On Adjustable(1V)
PV Voltage Of Light-Control Off Adjustable(1.5V)
Control Mode PWM
Display Parameters:Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage,Over Voltage, UnderVoltage, OverLoad, Short Circuit, Night. Etc
Working Temperature &Humidity: -20~+55 cel.degree/35~85%RH(Without Condensation)
Temperature Compensation(optional): 4mV/cel.degree/2V ,¨C35--+80Cel.degree, Precision:+/-1cel.degree
Protection Function: Solar reversechargeprotection,Solar reverseconnection protection,Battery overcharge protection,Battery overdischarge protection,Battery reverseconnection protection, Lightning protection Wind turbine current limiting,
Optional Function 1: RS Communication and Matched Software.
Optional Function 2: Low Voltage Charge Function.With this function.
