Product Details
- Amazon Sales Rank: #47832 in Lawn & Patio
- Brand: Renogy
- Model: RNG-100D
- Dimensions: 21.30" h x
1.40" w x
47.00" l,
16.50 pounds
Features

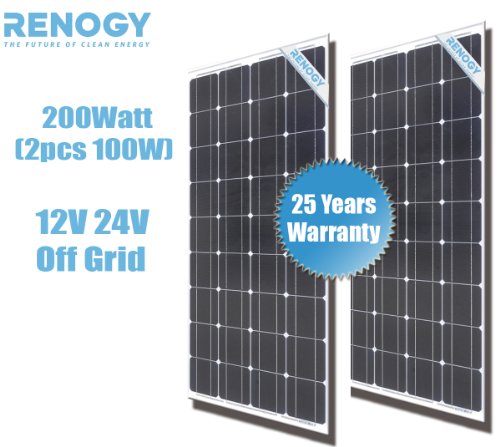

- Two PCS of 100Watt solar Panel(total 200Watts), Renogy solar panels use the most premium components and 'Grade A' solar cells to ensure durability and High Modules Conversion Efficiency.
- Renogy solar panel is expandable with both series and parallel connection
- Renogy 100 watt monocrystalline solar panel charges 12V battery and have guaranteed positive tolerance
- Renogy solar panels are framed in heavy duty anodized extruded aluminum with drainage/mounting holes and generate Excellent performance in low light environments
- Delivered ready for connection & Fast and inexpensive mounting
2pcs 100 W Watt 100W 100Watts Off Grid 12 Volt 12V RV Boat USA Solar Cells
Product Description
Electrical Specifications Optimum Operating Voltage (Vmp): 18.9V Optimum Operating Current (Imp): 5.29 A Open - Circuit Voltage (Voc): 22.5 V Short- Circuit Current (Isc): 5.75 A Maximum Power at STC: 100 W Operating Module Temperature: -40°C to + 90°C Maximum System Voltage: 600 V DC (UL) / 1000 V DC (IEC) Maximum Series Fuse Rating: 15A STC: Irradiance 1000 W/m2, module temperature 25°C, AM=1.5; Mechanical Specifications Solar Cell: Mono-crystalline 125 x 125 mm (5 inches) No. of cells: 36 (4x9) Dimensions: 47 x 21.3 x 1.4 in (1195 x 541 x 35 mm) Weight: 16.5 lbs (7.5 kg) Front Glass: 3.2 mm (.13 in)tempered glass Frame: Anodized aluminum alloy Junction Box: IP65 rated Output Cables: 4.0 mm2 (.006 in2), 600mm(23.6inches) Connectors: MC4 compatible UL Listed: CE Fire Rating: Class C
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.
By Vinny
I purchased two of these 100 watt Renogy panels from Amazon almost a week ago. The price per watt, including the free shipping, came to about $1.65 per watt. The panels arrived here two days ago. They were amazingly small and lightweight for their rated capacity (100 watts apiece), and my tests show that they easily meet their ratings. The design and construction of these panels appears to be very high quality, and I have nothing but praise for these panels!My location is relatively shaded, which means that any and all of my solar panels experiences some degree of shade and shadowing throughout the day, and my location is also subject to blocking of early AM sun and late PM sun from nearby mountain ridges to the east and to the west, and the two days since I installed the panels have been quite dark and overcast, and yet the panels have nonetheless consistently put out more power than I would have expected under those conditions (I am an engineer; I know what I am talking about, and I have the equipment here to measure the power levels accurately), and, in fact, these two 100 watt panels put out significantly more power under such conditions than any of my other 200 watt banks of panels. This makes sense to me, for monocrystalline panels (and these Renogy 100 watt panels are monocrystaling panels) tend to do better under marginal low-light conditions than do polycrystalline panels or amporphous panels.I am very happy with these panels. In fact, I will shortly be ordering another pair of these panels!
