Product Details
- Amazon Sales Rank: #49361 in Lawn & Patio
- Brand: Renogy
- Model: RNG-100D
- Dimensions: 1.50" h x
21.30" w x
47.00" l,
16.50 pounds
Features

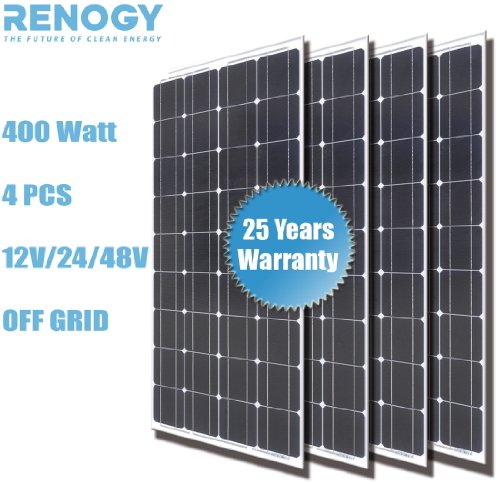

- FOUR PCS of 100Watt solar Panel(total 400W Watts)
- Delivered ready for connection & Fast and inexpensive mounting
- 100 watt monocrystalline solar panel charges 12v battery
- Withstand high wind (2400 Pa) and snow loads (5400 Pa) & Excellent performance in low light environments
- High Modules Conversion Efficiency
4pcs 100W Watt Total 400W 400Watts Solar Panel Off Grid 12V 24V 48V RV Boat
Product Description
Electrical Specifications Optimum Operating Voltage (Vmp): 18.9V Optimum Operating Current (Imp): 5.29 A Open - Circuit Voltage (Voc): 22.5 V Short- Circuit Current (Isc): 5.75 A Maximum Power at STC: 100 W Operating Module Temperature: -40°C to + 90°C Maximum System Voltage: 600 V DC (UL) / 1000 V DC (IEC) Maximum Series Fuse Rating: 15A STC: Irradiance 1000 W/m2, module temperature 25°C, AM=1.5; Mechanical Specifications Solar Cell: Mono-crystalline 125 x 125 mm (5 inches) No. of cells: 36 (4x9) Dimensions: 47 x 21.3 x 1.4 in (1195 x 541 x 35 mm) Weight: 16.5 lbs (7.5 kg) Front Glass: 3.2 mm (.13 in)tempered glass Frame: Anodized aluminum alloy Junction Box: IP65 rated Output Cables: 4.0 mm2 (.006 in2), 600mm(23.6inches) Connectors: MC4 compatible UL Listed: CE Fire Rating: Class C
