Product Details
- Amazon Sales Rank: #107954 in Lawn & Patio
- Brand: Penny
Features
- Advanced switching device design, small size, no noise, high efficiency work, and advanced short circuit protection

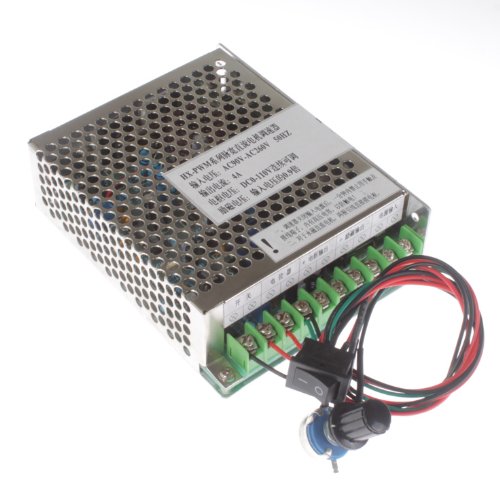

HX-PWM Pulse DC Motor Speed Controller Driver Input AC90-260V Output DC0-110V 4A
Product Description
The detailed technical parameters:
Input voltage: AC90-AC260V 50/60Hz wide voltage (voltage global adaptation, is more suitable for harsh grid voltage fluctuations)
2, the output current: 4A
3, fit the motor power: 50W ~ 300W
4, the armature output voltage: DC0 ~ 110V stepless
5, excitation output voltage: 0.9 times the input voltage current 1A
6, Dimensions: length 130mm × width 98mm × height 38mm
7, Connection: terminal type (conveniently)
Work environment:
1, ambient air temperature: -10 ~ 40 ° C
2, the air relative humidity below 85%, well-ventilated
3, installed in a well-ventilated, dramatic impact, no vibration, no explosion hazard media and the occasion of the conductive metal powder
Product features:
1, using pulse width technology more stable speed, low-speed efforts
With overcurrent protection cut-off device is more reliable performance
2, with a soft start device to eliminate the motor starting current is too large
3, with flexible multi-function interface
Notes:
1.Governor input power is turned off within one minute ban hand to touch the terminals, high voltage capacitor to prevent electric shock!
2, two lines of permanent magnet DC motor, the two lead directly connected to the armature. Prohibit access excitation
Wiring diagram:
Figure on the standard switch, connected to the motor rotation, disconnect stop.
Package List:
1 * DC Motor Speed Controller Driver Input AC90-260V Output DC0-110V 4A
