Product Details
- Amazon Sales Rank: #47953 in Lawn & Patio
- Brand: MISOL
Features
- Hybrid wind solar charge controller Rated Power 600W (Best ration: wind turbine500W, PV cells100W) Applicable batteries 12/24V,100-300Ah(automatic distinguish voltage)
- Wind turbine automatically braking voltage 17.5V/32.5V (DC voltage after rectification)
- 1.Prevent the battery from overcharge. It stop automatically when the battery is full charged 2. Prevent the battery from over discharge, it will down load when the voltage is lower than the default parameter.
- 3 Prevent supply electricity from the battery to solar panels in night 4. Automatic braking of the turbine when the wind turbine output voltage is too high
- LCD display

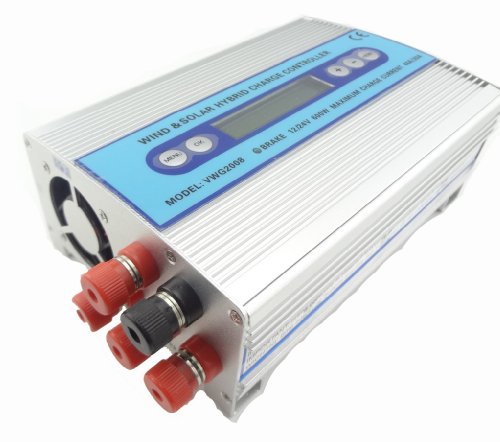

MISOL Hybrid Solar Wind Charge Controller 500W+100W / wind charge controller / wind regulator / solar regulator
Product Description
Functions:
the controller can Control both wind turbine and solar panel charge to the battery or battery bank intelligently. It can detect of 12/24 V battery systems automatically.
1. Digital high accuracy control
2. Keep the battery is maintained in best powerful condition.
3. Prevent the battery from overcharge. It stop automatically when the battery is full charged
4. Prevent the battery from over discharge, it will down load when the voltage is lower than the default parameter.
5. Prevent supply electricity from the battery to solar panels in night
6. Automatic braking of the turbine when the wind turbine output voltage is too high
7. The charge controller will in the self-protection condition and deadlocked when the load current is higher than the rated current. Press RESET button to start again after resolve the over load situation
8. The unit will store information such as: Total amps Total amps , KWH generated by wind turbine and solar panel; Amps used by load etc
9. Customer can adjust the charge off voltage, User off voltage, User on, voltage, brake current, brake time etc.
Rated Power 600W (Best ration: wind turbine500W, PV cells100W)
Applicable batteries 12/24V,100-300Ah(automatic distinguish voltage)
Wind turbine automatically braking voltage 17.5V/32.5V (DC voltage after rectification)
Battery full charge cut 14.32V/28.64V(default,adjustable)
Battery low voltage disconnect load:10.98V/21.97V(default,adjustable)
Load on voltage 12.44V/28.88V(default,adjustable)
Charge current max 40A/20A
Load current max: 35.61A/17.80A
Recovery time after the automatic braking: 10 Seconds(default, adjustable)
No load loss: less than 40mA
Dimensions: 228*133*75mm
Weight:1.2kg
Working environment: temperature -10~+50 cel.degree,Relative humidity 0~90%
