Product Details
- Amazon Sales Rank: #13687 in Lawn & Patio
- Brand: Renogy
- Model: RNG-250D
- Dimensions: 1.57" h x
39.00" w x
65.00" l,
42.00 pounds
Features
- High Modules Conversion Efficiency & Guaranteed Positive Output Tolerance (0-3%)
- Maximize system output by reducing the mismatch loss
- Delivered ready for connection & Fast and inexpensive mounting
- Withstand high wind (2400 Pa) and snow loads (5400 Pa) & Excellent performance in low light environments
- CHUBB general liability insurance; errors and omissions liability insurance

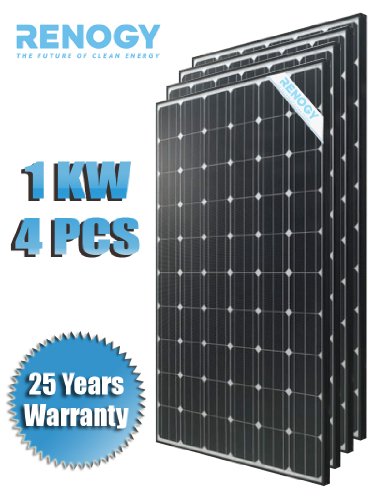

4pcs Premium Renogy 250 Watt 250w Solar Panel Photovoltaic Pv -1000w 1.0kw System/ Made-in-usa Solar Cells
Product Description
Electrical Specifications Optimum Operating Voltage (Vmp): 31.64V Optimum Operating Current (Imp): 7.9 A Open - Circuit Voltage (Voc): 37.78 V Short- Circuit Current (Isc): 8.35 A Maximum Power at STC: 250 W Operating Module Temperature: -40°C to + 90°C Cell Efficiency 18.1% Module Efficiency 15.3% Maximum System Voltage: 600 V DC (UL) / 1000 V DC (IEC) Maximum Series Fuse Rating: 15A STC: Irradiance 1000 W/m2, module temperature 25°C, AM=1.5; Mechanical Specifications Solar Cell: Mono-crystalline 156 x 156 mm (6 inches) No. of cells: 60 (6 x 10) Dimensions: 65 x 39 x 1.57 in (1650 x 990 x 40 mm) Weight: 41.9 lbs (19.0 kg) Front Glass: 3.2 mm (.13 in) tempered glass Frame: Anodized aluminum alloy Junction Box: IP67 rated Output Cables: 4.0 mm2 (.006 in2), 1200mm(39.4inches) Connectors: MC4 compatible UL Listed: UL 1703 Fire Rating: Class C
Customer Reviews
Most helpful customer reviews
2 of 3 people found the following review helpful.
By j eiler
i love this panels. They are very very well made. The best thing is they are made in the USA. They are 1000 watts total but they put out more. I'm getting 1125 watts out of them that's great in my book. I would recommend to anyone.
