Product Details
- Amazon Sales Rank: #65195 in Lawn & Patio
- Brand: Renogy
- Model: 6RNG-250D
- Dimensions: 1.57" h x
39.00" w x
65.00" l,
42.00 pounds
Features

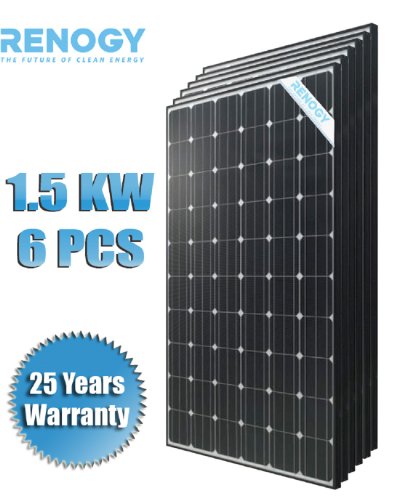

- 6 Pcs Renogy 250 Watt Monocrystalline Solar Panel: 6 pieces, total 1.5KW
- Maximize system output by reducing the mismatch loss
- Delivered ready for connection & Fast and inexpensive mounting
- Withstand high wind (2400 Pa) and snow loads (5400 Pa) & Excellent performance in low light environments
- CHUBB general liability insurance; errors and omissions liability insurance
6pcs Premium RENOGY 250W Watts Solar Panel(1.5KW Solar System)-Made In USA solar cells
Product Description
Electrical Specifications
Optimum Operating Voltage (Vmp): 31.64V
Optimum Operating Current (Imp): 7.9 A
Open - Circuit Voltage (Voc): 37.78 V
Short- Circuit Current (Isc): 8.35 A
Maximum Power at STC: 250 W
Operating Module Temperature: -40°C to + 90°C
Cell Efficiency 18.1%
Module Efficiency 15.3%
Maximum System Voltage: 600 V DC (UL) / 1000 V DC (IEC)
Maximum Series Fuse Rating: 15A
STC: Irradiance 1000 W/m2, module temperature 25°C, AM=1.5;
Mechanical Specifications
Solar Cell: Mono-crystalline 156 x 156 mm (6 inches)
No. of cells: 60 (6 x 10)
Dimensions: 65 x 39 x 1.57 in (1650 x 990 x 40 mm)
Weight: 41.9 lbs (19.0 kg)
Front Glass: 3.2 mm (.13 in) tempered glass
Frame: Anodized aluminum alloy
Junction Box: IP67 rated
Output Cables: 4.0 mm2 (.006 in2), 1200mm(39.4inches)
Connectors: MC4 compatible
UL Listed: UL 1703
Fire Rating: Class C
