Product Details
- Amazon Sales Rank: #141130 in Home Improvement
- Brand: SainSonic
Features
- 12/24V automatic recognition
- Widely used, automatically recognize day/night.
- Digital LED menu, only one key solve all setting simply
- Intelligent timer function with 1-15 hours option
- Gel, Sealed and Flooded battery type option.

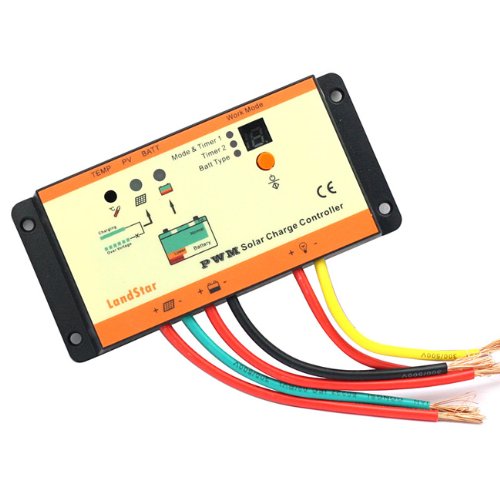

Waterproof PWM LS1024RP Solar Panel Charge Controller Regulator 12/24V 10A
Product Description
Features:
* Waterproof design IP66
* Ideal for the extreme environments with corrosion, dust, water etc
* Light and timer control (Single timer and dual timer optional)
* High efficient Series PWM charging, increase the battery lifetime and improve
the solar system performance.
* Use MOSFET as electronic switch, without any mechanical switch
* Unique dual timer function, enhance the flexibility of street light system.
* Waterproof design, suitable for the extreme environment with corrosion, dust,
water etc.
* Adopt temperature compensation, correct the charging and discharging
parameters automatically and improve the battery lifetime.
* Electronic protection: Overheating, over charging, over discharging, overload,
and short circuit.
* Reverse protection: any combination of solar module and battery.
Technical Specifications:
Model: LS1024RP
Nominal System Voltage:12 / 24VDC Auto work*
Battery Voltage Range:6-36V
Current: 10A
Charge Circuit Voltage Drop:<=0.26V
Discharge Circuit Voltage Drop:<=0.15V
Self-consumption:<=6mA
Temperature Compensation Coefficient (TEMPCO)*:-30mV/Centigrade/12V [25
Centigrade ref]
?
Note:
*The controller will recognize the system rated voltage when start up. If the
battery voltage is lower than 18V, it will recognize the system as 12V.If the
battery voltage is greater than 18V, it will recognize the system as 24V.
* Compensation of equalize, boost, float and boost reconnect voltage.
Environmental Parameters:
Working temperature:-35 Centigrade to +55 Centigrade
Storage temperature:-35 Centigrade to +80 Centigrade
Humidity:10%-90% NC
Enclosure:IP66
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.
By Phillip T. Elli
Packaging was very good. Controller works as expected and I would reccomend this item. This controller has been working in a system for 6 months and has works beyond expectations!
