Product Details
- Amazon Sales Rank: #161472 in Home Improvement
- Brand: Sain Store
Features
- Generally keep the battery on full voltage condition.
- Prevent the battery from over-charging.
- Prevent the battery from over-discharging.
- Prevent the battery from supplying power to solar panels during nights.

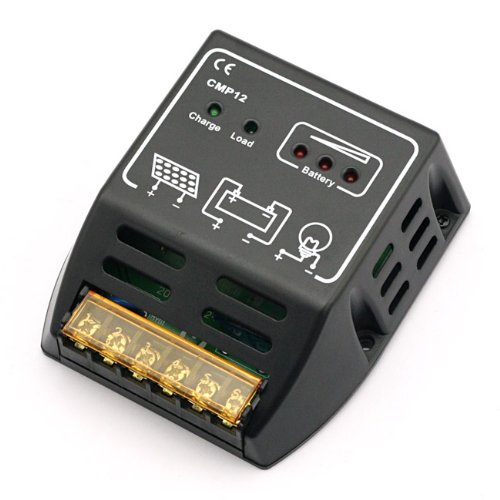

SainSonic Solar Regulator 12-15A 12/24V, Remote Meter LCD Display
Product Description
Features
*Microcontroller digital accuracy
*PWM Charge mode
*State of charge (SOC)
*Temperature compensation
*Automatic detection of the voltage
*External temperature sensor
*Remote temperature sensor (optional)
*Remote meter MT-2 shows the working data and condition
*Battery type option
*Battery AH setting
*Modify parameters through four keys
*Electronic Protection
*All systems parameters in digital value, system status as symbols.
Technical Specification
System voltage: 12v/24v Autowork
Rated charging current: 20A
Rated load: 20A
Over load, short circuit protection: 1.25 times of IE for 60 seconds, 1.5 times
of IE by for 5 seconds overload protection; >=3 times of IE short circuit
protection
Self consumption: <=6 mA
Charging circuit voltage drop: <=0.26v
Discharging circuit voltage drop: <=0.15V
Work temperature: -35 Centigrade to + 55 Centigrade
Temperature compensation: 0-10mv/Centigrade/2V
Control mode: PWM charging mode
Remote Meter LCD Specification
Working current: Strong backlight on < 23mA, 15 seconds; Low backlight on <
20Ma, 15 seconds; Backlight and LED indicator off < 15Ma
Work temperature: -10 Centigrade to + 40 Centigrade
Communication Port: RJ45 (8PIN)
Communication Cable: 1.5 meters
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.
By Inwardlyfacing
Says that it comes with a remote monitor but in fact doesn't even have a port for one. Had a blown fuse that was soldered to the board. Circuit board itself is actually painted solder on the bottom. All in all it's a piece of junk that hardly works...
