Product Details
- Amazon Sales Rank: #23121 in Lawn & Patio
- Brand: UL SOLAR
- Model: STP030P
Features
- 30 WATT SOLAR PANEL
- 12 Volt DC Applications
- Dimension: 26.2" x 16.2" x 0.98"
- Vpm: 17.3V, Ipm: 1.77A
- Weight: 8 lbs

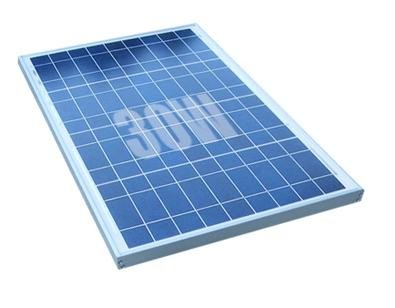

UL SOLAR 30 Watt 12 Volt Polycrystalline Silicon Solar Panel
Product Description
SPECIFICATIONS
CELL: Multicrystalline Silicon Solar Cell ( 156mm x 39mm )
Number of cells and connections: 36 ( 4 x 9 )
Dimensions of module: 26.2 x 16.2 x 0.98 ( in )
Weight: 8 ( lbs )
Power at STC ( Pm ): 10W
Maximum Power Voltage ( Vpm ): 17.3V
Maximum Power Current ( Ipm ): 1.77A
Open Circuit Voltage ( Voc ): 21.9V
Short Circuit Current ( Isc ): 1.93A
Tolerance: (+-)5%
Module Efficiency: 9.5%
LIMITS
Operating Temperature: -40 to + 85 ºC / - 40 to + 185 ºF
Maximum System Voltage: 600V DC
Series Fuse Raiting: 10A
COMPONENTS AND MECHANICAL DATA
Front Glass: 3.2mm tempered
Junction Box: IP-65 rated
Cable Lengths: 3000MM APPROX. 9 FT
Frame: Anodized Aluminum Alloy Type 6063-T5
Encapsulation Material: EVA(0.5 +- 0.05mm thickness )
Temperature Range: -40 to + 85 ºC
Back Foil: White Pet ( 0.2 +- 0.03mm thickness )
Max Load: 5400Pa
TEMPERATURE COEFFICIENT
Nominal Operation Cell Temperature: 48ºC to +- 2 ºC
Current Temperature Coefficient: 0.06+-0.01%/K
Voltage Temperature Coefficient: - ( 78+-10 ) mv/K
Power Temperature Coefficient: - ( 0.5+-0.05 ) %/K
