Product Details
- Amazon Sales Rank: #160924 in Lawn & Patio
- Brand: Fuloon
- Model: BH-SOLA02
Features
- Fully automatic operation & Electronic protections
- Double digital LED display, numbers equal to timer setting
- Temperature compensation, with external temperature sensor
- PWM charge mode & State of Charge(SOC)
- Big terminals, big distance between terminals

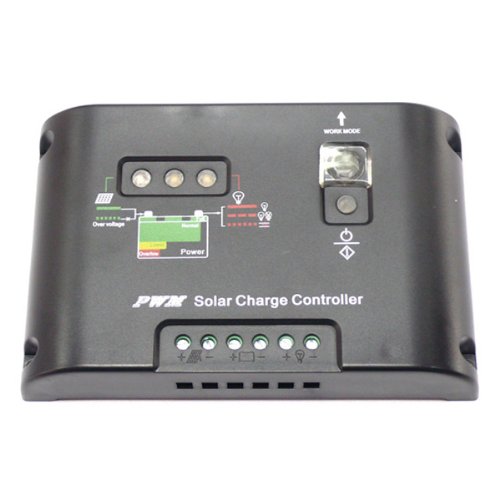

Fuloon 10A Solar Panel Charge Controller Solar Regulator 10A 12V 24V
Product Description
Description:
This solar charge controller is designed for solar DC power supply system. MCU and professional software are applied as the control center to fulfill intelligent system control. LED will indicate the working state. It's easy to turn on and turn off output through manual operation. And there are two optional voltage modes, 12V and 24V. It's good for street and pathway lighting, parking area, bus station and signage and etc
Specifications:
Rated charging current:10A
Rated load current:10A
Work voltage:12V;24V auto switch
Over load, short circuit protection:Over load protection action:1.25times rated load current in 60-sec, 1.5 times rated load current in 5-sec; Short circuit protection action:>=3times rated load current
No load current:<=6mA
Charging circuit voltagedrop:<=0.26V
Load circuit voltage drop:<=0.15V
Over voltageprotection:14.8V, x2/24V(depending on 12V or 24V voltage)
Work temperature: Industry stage: -35degree to +55?; Industry stage: -35? to +55degree
Boost charge voltage:14.6V; x2/24V(keep 10-min) (Only applied when overdischarge appears)
Direct charge voltage:14.4V; x2/24V(keep 10-min)
Float charge voltage: 13.6V; x2/24V(keep working until drop to the point of charge return voltage action)
Charge return voltage:13.2V; x2/24V
Temperature compensation:-5mv/?/2V(Boost charge, Direct charge, Float charge, charge return voltage)
Lower voltage indicate:11.2V; x2/24V
Over discharge voltage
Package Include:
1x 10A 12/24V Solar Charge Controller
1x User Manual
Please kindly notice before purchase
Order will be shipped via prior registered airmail(7-11 business days delivery
time after shipped out. NOT 17-28 days indicated by Amazon system), Tracking
number is available. Thanks for your understanding!
