Product Details
- Amazon Sales Rank: #52619 in Lawn & Patio
- Dimensions: 4.41" h x
2.05" w x
7.56" l,
Features
- Intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve.
- Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%.
- Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point)

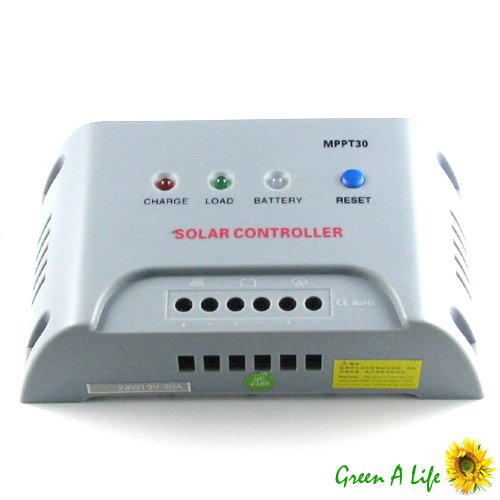

MPPT 30A Solar Power Charge Regulator Converter Controller Auto 12V/24V 720Watt
Product Description
- When the current of the load exceeds the rated current of the controller,
the controller will activate the protection mode and lock up.
- When the
load short circuited, the controller will activate the protection mode and lock
up.
- When the battery voltage is low, the controller will automatically
cut off the load from the system. If the voltage of battery is back to normal
and the load will restart working.
- Thunder protection
-
According to the battery voltage grade, the controller can automatically set
charge-off voltage, the load-off voltage, the load-restore voltage (The
parameter is default under 25°C condition, locked by the CPU procedure, cannot
adjust).
- The controller will automatically compensate the temperature
of the charging voltage according to the changes of ambient temperature.
- Rated Voltage: 12/ 24V (Automatic detected)
- Max Load Current: 30A
- Input Voltage Range: 12V - 20V/ 24V - 40V
- Full charge cut: 13.7V/
27.4V
- Low voltage cut: 10.5 - 11V/ 21V - 22V
- Length <1m Charge
loop drop: 0.25V
- Length <1m Discharge loop drop: 0.05V
-
Temperature compensation: -3 oC
- No load loss: ?10mA
- Over
voltage protection: 17V/ 34V
