- New 10A Solar Charge Panel battery Controller Regulator 12V 24V Auto Switcher
New 10A Solar Charge Panel battery Controller Regulator 12V 24V Auto Switcher
Product Description
The product can automatically manage the work of Solar Panel and battery in solar system,which is below 180W (12V) or below 360W (24V).
FUNCTION:
1.Over-load protection
2. Short-circuit protection
3.Lightning protection
4.Reverse discharging protection
5.Reverse-polarity protection
6.Under-Voltage protection
7.Over-charging protection
Attention:(PLEASE CONNECT THE BATTERY FIRST)
Open the top cover of controller,connect the wire and terminals of controller according to the drawing on the top cover of controller.
1. Connect the "+","-" poles of the battery to the correct ports of controller (3th & 4th one from left)
*If load indicator("load") flickers once and starts lightning after 30s,you can tell the connection is correct;the following operation can be proceed,otherwise,the following operation may damage the controller.
2. Connect the "+","-" poles of the solar panel to the correct ports of controller (1st &2th one from left)
*Incorrect connection may damage controller.
3.Connect the "+","-" poles of the correct ports of controller (5th & 6th)
1.The battery is being charged strongly when the charge LED is lightning,flickering meand the battery is in floating charge mode,if it is off means charging stopped.
2. When the load LED is lightning,it means there's a output and load can work;if it is off,there's not output and the load cannot work.
Notices:
1.Please make sure the rated voltage of solar panels,batteries the loads are same and are all 12V or 24V.
2.The rated current of solar panels and load must be less than the rated current of controller.
Package includes:

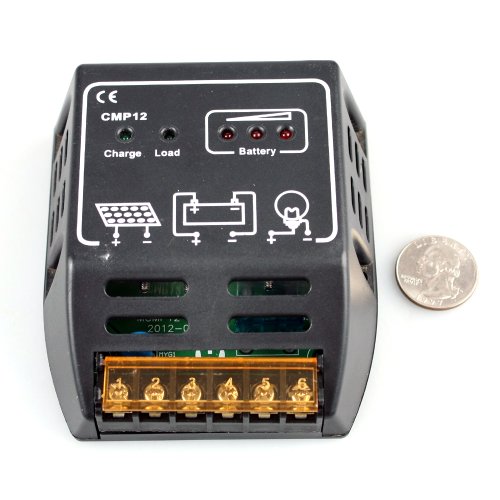

1 x CMP12 Solar Charge Controller 10A 12V/24V
1 x manual
