Product Details
- Amazon Sales Rank: #54636 in Lawn & Patio
- Brand: Everbright Solar
2- 230 Watt GRADE A Solar Panel UL CEC Certified Lowest Prices for A Grade Panel
Product Description
This item is not available for international shipping due to oversize!

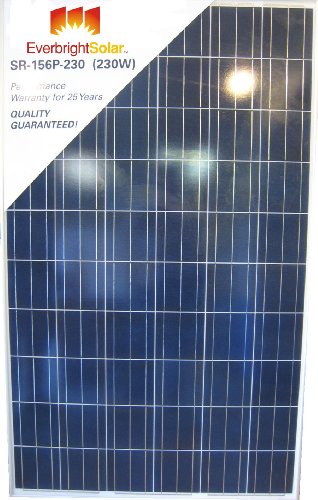

230 Watt A Grade Solar Panels - UL, CEC Certified
Key Features
Top ranked PTC rating
High module conversion efficiency
Maximizes system output by reducing the mismatch loss
Delivered ready to connection
Fast and inexpensive mounting
Withstand high wind (2400Pa) and snow loads (5400Pa)
Excellent performance in a low light environment
Made of high efficiency 165mm x 165mm multi crystalline solar cells.
UL approved Multicontact MC junction box rated at IP65.
3 bypass diodes minimize damage from hot spots from defective cells and shading.
MC4 male and female connectors for easy connections with other solar panels.
anti-reflective coating provides uniform blue color and increases absorption of light in all weather conditions.
High quality ultra white low iron solar glass for minimal light maximum light transmission.
Solar glass is temped to harden against hail assault.
Industrial strength double EVA encapsulation with TPT multilayer backsheet for the best protection against water, moisture, UV, and oxidation.
Ultra sturdy extruded aluminum frame provides structural strength and holes drilled at the right places for easy mounting, and drain holes to minimize water build up behind solar panels.
Qualification
UL listed - UL 1703
Fire rating - Class C
Specifications
The following are the key technical data of the solar panel, with a +-3% variance:
Peak power: 230 watts
Optimum operating voltage(Vmp): 30 V
Optimum operating current (Imp): 7.66 A
Open circuit voltage (Voc): 37 V
Short circuit current (Isc): 8.18 A
Maximum series fuse rating: 16 A
Operating module temperature: -40C to
+85C
Maximum system voltage: 600 V
Dimension of each solar panel: 65x39.1x2 inches or 1650x992x50mm, 44.06lbs
