Product Details
- Amazon Sales Rank: #90132 in Lawn & Patio
- Brand: Everbright Solar
Solar Cells Do-It-Yourself (DIY) Super Kit High Power Mono Cells + Junction Box 25amp + Solar Charge Controller
Product Description

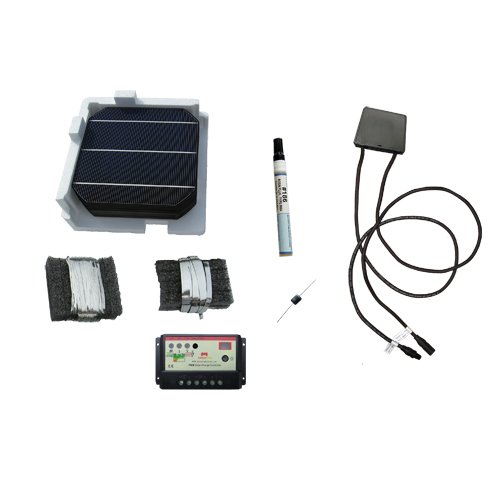

Solar Cells Do-It-Yourself (DIY) Super Kit High Power Mono Cells + Junction Box 25amp
This Solar Cells DIY Panel Super Kit enables you to make a DIY solar panel with higher efficiency 6x6 monocrystalline solar cells with a junction box.
Solar DIY Panel Kit Technical Data:
The following is a little more details regarding this kit: (cells, tabbing wires, bus wires, flux pen, diodes and solder)
I: Cells: 40 pieces 6x6 moncrystalline solar cells plus bonus cells
The standard cell specifications are the following, though the individual cells can be above or below these standards.
Cell Specifications:
Rated power : ~3.5 to 4 Wp
Open circuit voltage: 0.610v -0.621v
Short circuit current: 8.18 amp - 8.78 amp
Operating voltage: 0.488 v - 0.50 v
Operating current: 7.51 amp - 8.14 amp
Weight: Just above 6 grams, or 0.2 oz.
II: Tabbing wires: 120 feet tabing wire to connect the solar cells. Cut them into 12 inch sections to solder onto the bus bars on the cells.
III: Bus wires: 12 feet of bus wires. Use them to connect them between the series and connect the tabbing wires ends to the junction box at the back of the panel.
IV: Flux: an easy-to-use flux pen that dispenses flux onto the bus bar or your tabbing wires without leaving a mess. It's used to aid soldering and bonding of the wires to the cells. A must have item.
V: Diodes: 1 diode rated at 15 amp. Schottky style diodes.
VI: Standard Battery Charge Controller: 10 amp, 12 volt.
100% Satisfaction Guaranteed!
