Product Details
- Amazon Sales Rank: #89673 in Lawn & Patio
- Brand: BlueSolar
- Model: CM6024Z_60A

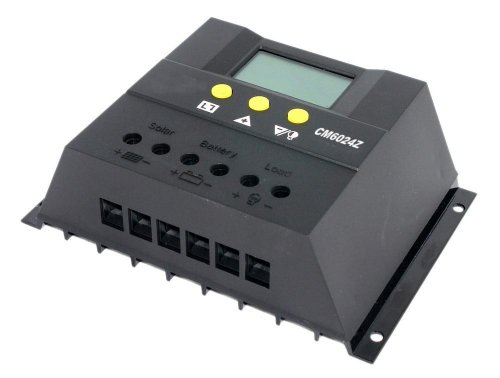

60A LCD Solar Charge Regulator Controller 12V/24V PWM
Product Description
- No Load Loss: < 30mA
- Loop Voltage Drop: < 200mV
- Charging Mode: PWM mode
- Temperature Compensation: -4mV / Cell / °C
- Installation Cable area: > 3# AWG ( 25 mm2 )
- Operating Temperature: -20 ~ 50 °C
- Storage Temperature: -30 ~ 70 °C
- Humidity Requirements: < 90% , no condensation
- Dimensions: 130 x 188 x 62 mm
- Mounting Hole Spacing: 90 x 178 ---?5 mm
- Weight : 590g
- Colour: Black
Features:
CM series controller is a kind of intelligent and multifunctional solar charge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs. CM series controller has the following features.
- Visual LCD graphic symbol
- Brief key operation
- Grade auto switch of system voltage
- Intelligent PWM Charging Mode
- Auto temperature compensation
- Adjustable charging & discharging parameter
- Settable working modes of loads
- Accumulative function of charging & discharging AH
- Remote Monitoring Function
- Protection for battery back discharging
- Protection for battery low voltage
- Overloading & short-circuit protection
- Battery reversed protection
- Delayed auto restart after overloading protection
- CE & RoHS Certification
Customer Reviews
Most helpful customer reviews
14 of 14 people found the following review helpful.
By Kim L. Rozell
Watch Video Here: http://www.amazon.com/review/R3KP6AKOQ0Y1YN Worked perfect! I like the LCD readout telling you the voltage, amperage, battery temperature, and much more. Charged 10 deep cycle batteries to proper 14.0 charging volts, and floated at 13.6 as industry standard, then back again. Could not ask for a better unit.I purchased a second one for the second solar array of 5 panels I purchased. See my video here for installation instructions.Only needs a flat blade screw driver to install. Back off the screws, insert wires, then tighten. All you have to do is follow the icons on the front to see where to place the wires. Shows + and - terminals on the icons.One solar panel input, one battery output, and a optional diversion load output for when the batteries are full and you want to make good use of the unused electrical power.
1 of 1 people found the following review helpful.
By SVM
Exactly the product I expected. Functions to perfection. Actually have two of them running almost half a year now, non stop, without even a hic-up.
0 of 8 people found the following review helpful.
By Mike J. Cianciosi
I WILL DO THIS AS A LIST AND YES IM SHOUTING !1. NO One told me this was being shipped from shanghi china. 30-45 days shipping.I live in an RV fulltime.2. did not tell me until after they charged my card.3. NO CONNECTORS for the solar panels and batteries. (note thier is NO standard for this industry of solar panels) Im told they use MP4 connectors which i have never heard of.4. Amazon was not too happy when i called them about this item and what was going on.5. I cant return this item because i need it- It does what i need it to do -SUPPOSIDLY!6. power plug end arrived with no adapter attached.7. Cost was very high compared to other companies. and the 30 watt unit here is from the same company.ABOUT REVIEWER :I run busconvert dot com and we write articles on how to convert busses and the goodies you need to buy to make it work. So im not stupid in these matters and have converted a greyhound bus into a motorhome with 10 solar panels and 10 batteries.
