Product Details
- Amazon Sales Rank: #111042 in Lawn & Patio
- Dimensions: 3.94" h x
1.26" w x
5.31" l,
Features
- Intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve.
- Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%.
- Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point)

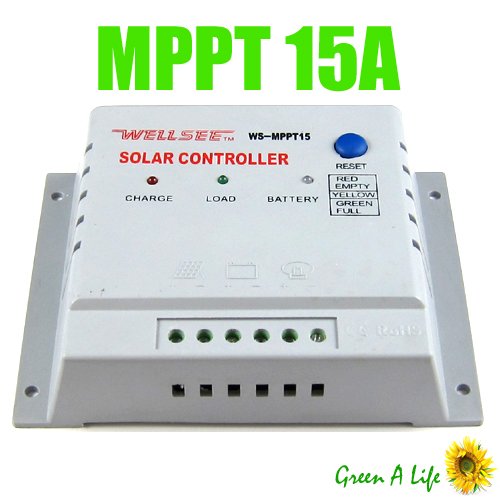

MPPT 15A Solar Power Charge Regulator Converter Controller 12V/24V Auto 240Watt
Product Description
- When the battery voltage is low, the controller will automatically cut off
the load from the system. If the voltage of battery is back to normal and the
load will restart working.
- Thunder protection
- According to
the battery voltage grade, the controller can automatically set charge-off
voltage, the load-off voltage, the load-restore voltage (The parameter is
default under 25°C condition, locked by the CPU procedure, cannot adjust).
- The controller will automatically compensate the temperature of the
charging voltage according to the changes of ambient temperature.
- Rated Voltage: 12V/ 24V (Automatic detected)
- Max Load Current: 15A
- Input Voltage Range: 12V - 20V/ 24V - 40V
- Full charge cut: 13.7V/ 27.4V
- Low voltage cut: 10.5 - 11V/ 21V - 22V
- Largest support: 360 Watt
- Temperature compensation: -3 oC
- No load loss: ?10mA
- Over voltage protection: 17V/ 34V
