Product Details
- Amazon Sales Rank: #89990 in Lawn & Patio
- Brand: Solar-X
- Model: ST-10L-12V
Features
- 3 Year Limited Warranty
- Epoxy encapsulated electronics ensure durability and longevity
- Rated Solar & Load Current: 10A @ 12V
- Constant voltage pulse width modulation (PWM) charging

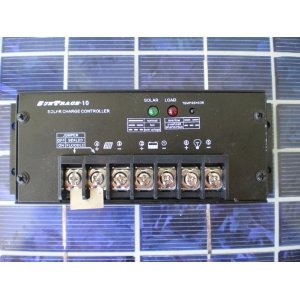

SunTracer ST-10L-12V Charge Controller LVD 10A 12V - Equivalent Replacement Controller for Morningstar SunSaver 10L Charge Controller LVD 10A 12V (Not Manufactured by Morningstar)
Product Description
Solar-X SunTracer includes standard features and capabilities not found in any other small PV controller. -- SunTracer 's technology provides: - Exceptional Reliability - PWM Battery Charging - Consistent High Quality - 100% solid state - Series design (not shunt) - True 0 to 100% PWM duty cycle - Setpoint accuracy to 35 mV - Rated for 25% overloads - Fully encapsulated in epoxy potting - Marine rated terminals / anodized case - Temperature compensation - Sealed / Flooded battery select - No need to derate - Parallel for 40 amps or more - Green charging / Red LVD indicators -- Mechanical Specifications: - Wire size #10 AWG (5.2 mm2) - Note: Some #10 spade connectors may not fit terminals - Anodized aluminum case - Marine rated terminals - Epoxy encapsulated - Weight is 8 oz (0.23 kg) -- Electrical Specifications: 12 Volt System - 25 Volt Max PV - Rated Solar Input: 10A - Rated Load: 10A - Max array short circuit current 12.5A - 25% Current Overload 5 min. - Regulation Voltage: Sealed Battery 14.1 V 28.2 V - Flooded Battery 14.4 V 28.8 V - Temp. Comp. (mV/ C) -28 -56 - Self-consumption 6 to 10 mA - Operating Temp. -40 to +85 C -- Reverse Current Protection: The SunTracer prevents the battery from discharging through the PV array at night. There is no need to install a blocking diode for this purpose. -- Noise: The SunTracer circuit minimizes switching noise and filters all noise output to extremely low levels when the system is properly grounded. If noise is present in a telecom load, it is most likely a grounding problem in the system.
Customer Reviews
Most helpful customer reviews
2 of 3 people found the following review helpful.
By Reed
The Solar-X Brand charge controller (SunTracer 12V-10L- LVD) is used as a component for our companies Mountain Top Solar Repeaters. We used these to replace malfunctioning Morningstar Sunsaver 12V-10L -LVD Regulators. We are very happy with the Solar-X units. I was able to mount it straight to the battery box back-plate with some nuts and bolts and the fittings that go to the battery were exactly the size I needed. We are using Industrial Grade 85 W crystalline solar panels (also manufactured by Solar-X Model: MSX-KC85) the controller is delivering a steady and fast charge to our batteries. The 110 amp hour battery gets charged back from 25% to 100% in about 6 hours. The indicator lights are easy to read and are accurate. We will be using Solar-X Components for all our future Solar repeater Systems.
2 of 3 people found the following review helpful.
By micksinc
This SunTracer controler works great. It's a sold unit and very easy to setup. It keeps a very steady voltage to the battery. The best quality I've seen for the money. With free shipping on Prime was a good deal.
1 of 4 people found the following review helpful.
By Robert MacDowell
The item title starts with "Morningstar Sunsaver blah blah..." and then says the magic word "EQIVALENT".THIS controller is actually some other brand I've never heard of.Don't be fooled!!!
